Light and compact, single C ultimate output, MSH 25W PD charger review

MSH recently released a 25W PD charger designed for iPhone and iPad users, but how compatible is it with Android devices? How compatible is it with Android devices? Is the temperature guaranteed in its small size? The following will tell you through the actual test.

Model Number：TR-353

Material:PC/ABS

USB Type:1USB-A +1Type-C

Input:AC 200V~240V 50/60Hz 0.7A

C1 Output : 5V~3A,9V~2.78A,12V~1.08A;

Power:25W MAX

The MSH 25W charger has the same design language as the other two; both are white matte frosted shell + smooth glossy output panel stitching design.

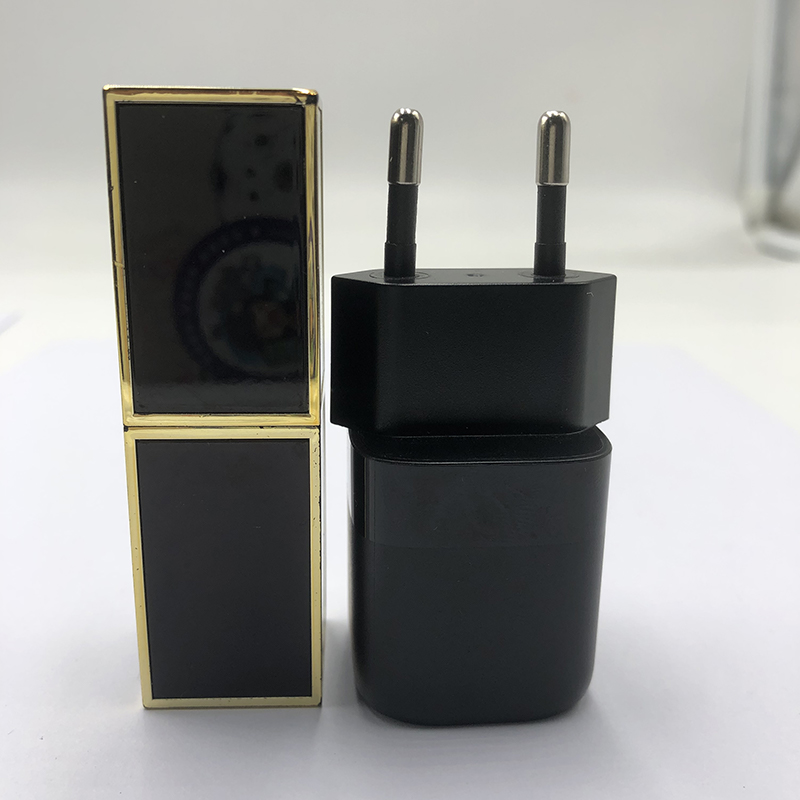

Small body in the pocket will not have a significant foreign body feeling.

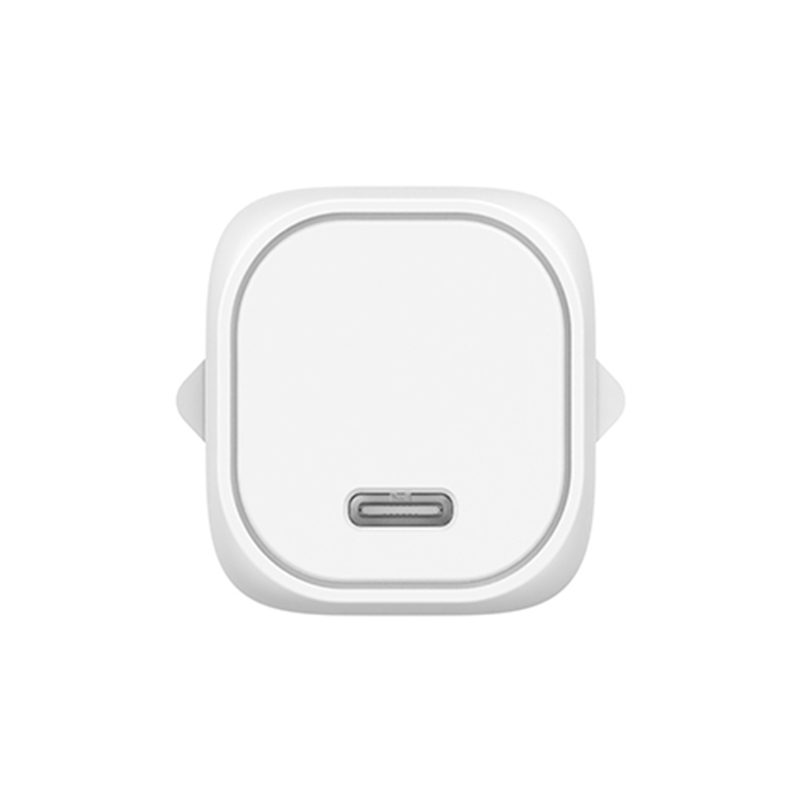

The output panel is configured with a single USB-C port, and the female port rubber core is black.

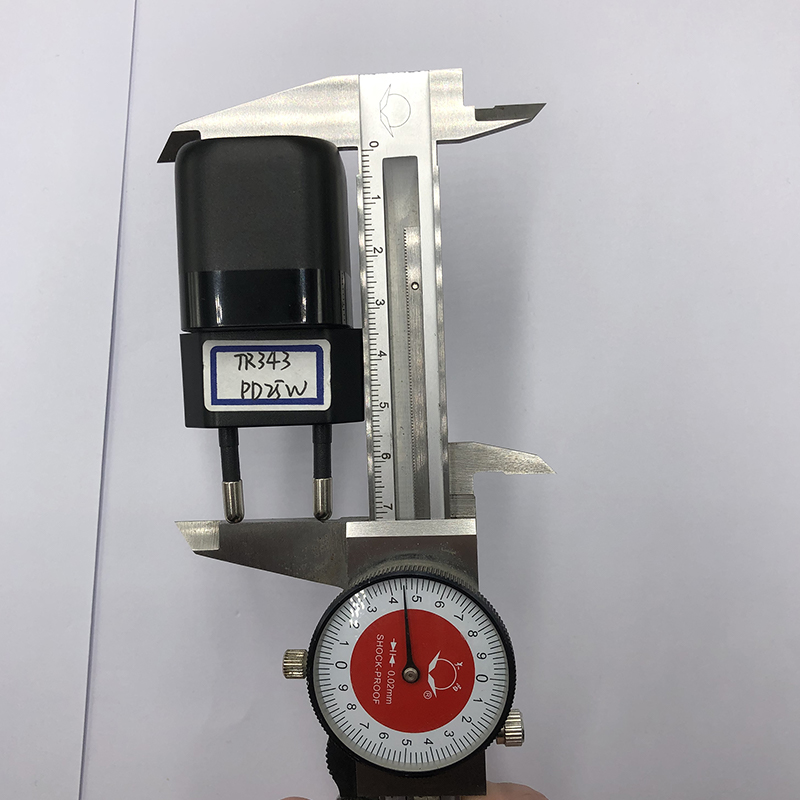

The length of the charger is about 72mm.

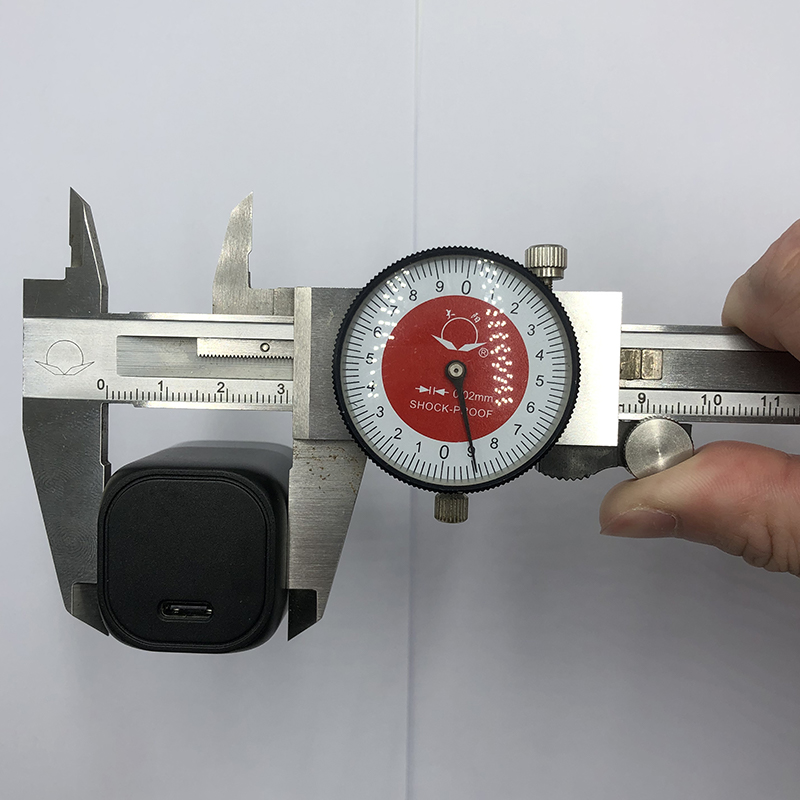

The height of the charger is about 32mm.

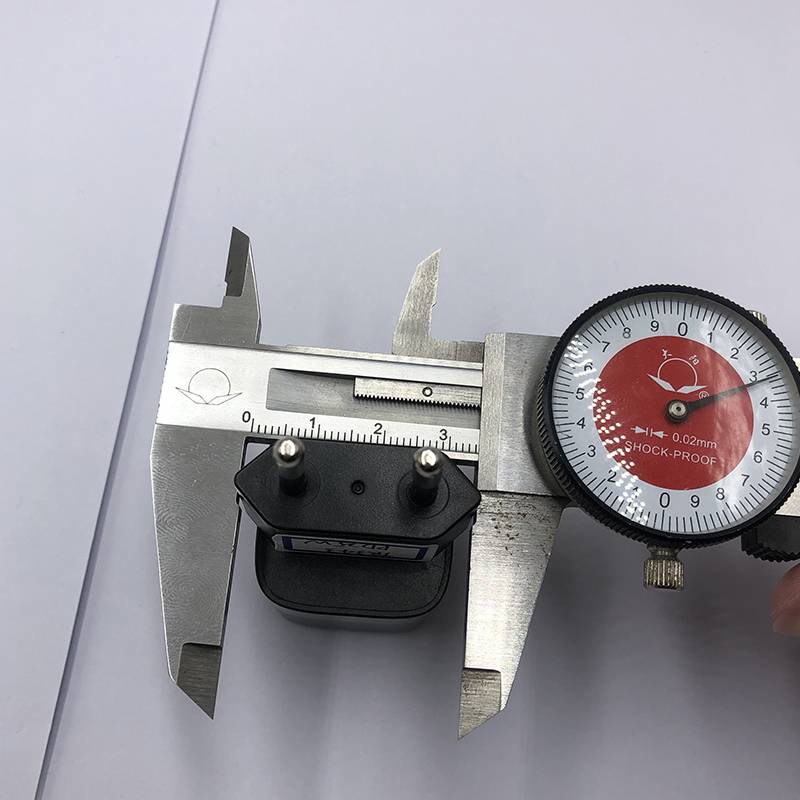

The width (thickness) of the charger is about 35mm.

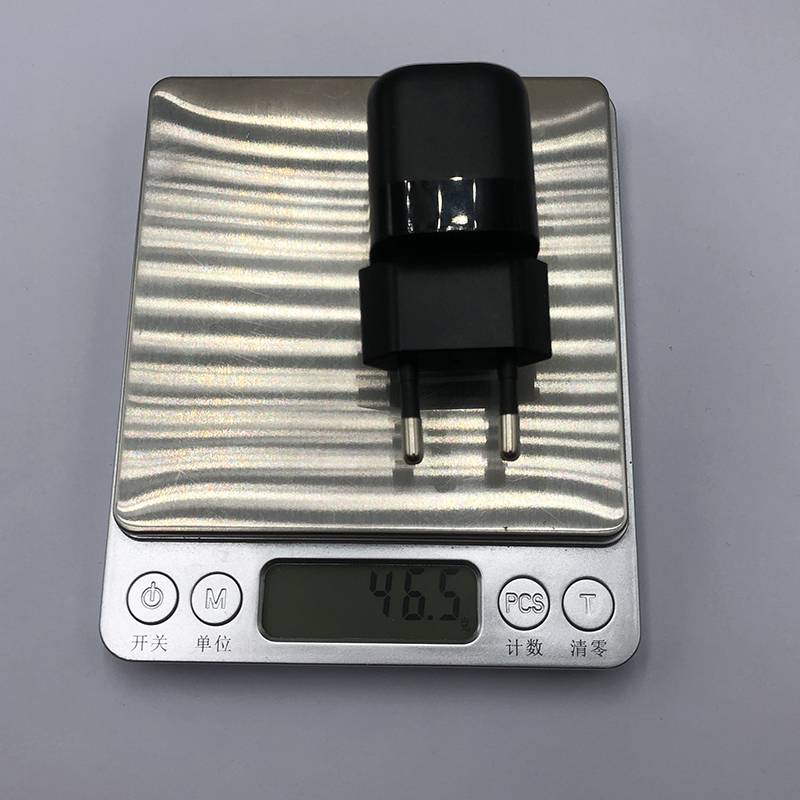

The weight of the charger is about 46.5g, which is only 8 coins in weight compared to the 6.1g of the fifth set of 1 yuan coins.

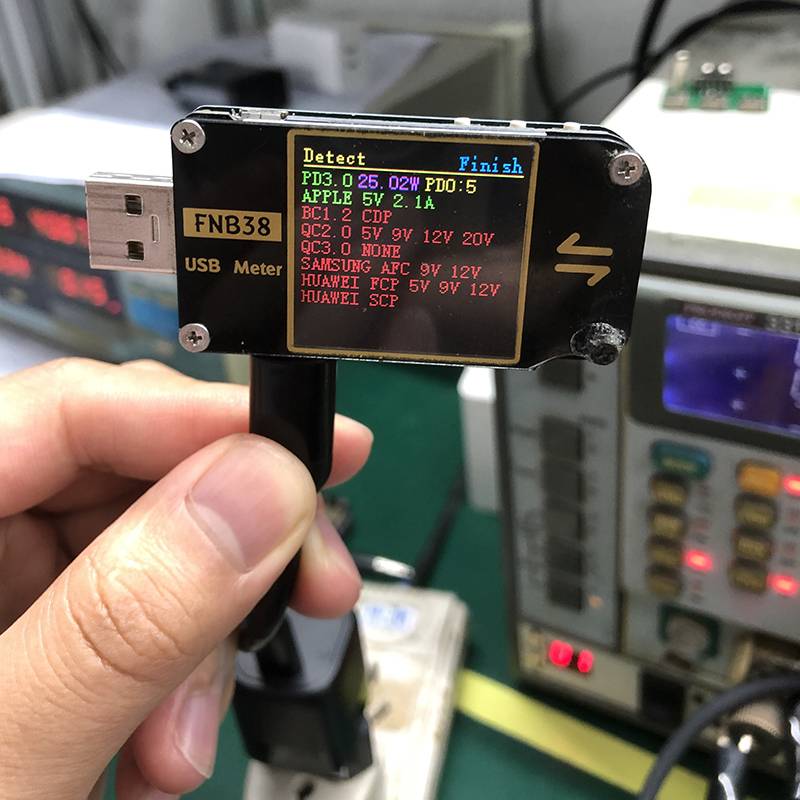

The measured USB-C interface supports Apple 2.1A, PD3.0, PPS and other charging protocols.

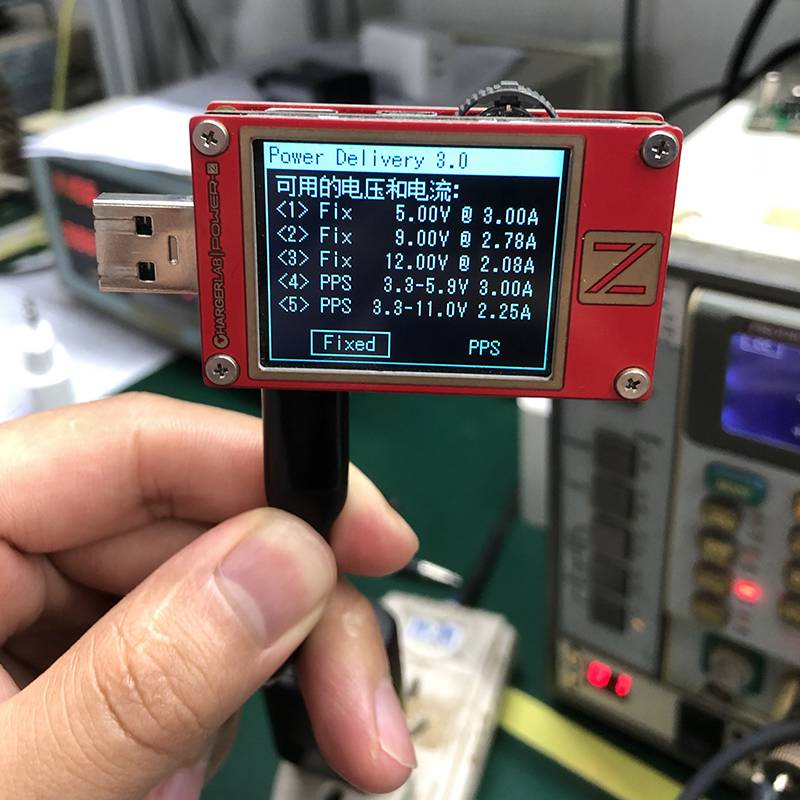

The USB-C interface supports 5V3A, 9V2.78A, 12V2.08A, three sets of fixed voltage gear, as well as 3.3-5.9V3A, 3.3-11V2.25A two sets of PPS voltage gear.

Summary

MSH 25W charger is designed with glossy output panel appearance + matte case + rounded corners; in addition, the overall weight of 25W charger is only comparable to 8 coins in its delicate and compact size, making it easy to carry and capable of traveling.

In terms of performance, the MSH 25W charger is equipped with a single USB-C port, but the 25W output power can also meet the fast charging needs of cell phones, tablets and game consoles.

The quality of the charger to ripple test, conversion efficiency and temperature test show, according to the national unified charger output quality standards, the lower the ripple, the higher the output quality of the charger, from the actual test results can be seen in the 220V 50HZ, 110V 60Hz two types of utility no-load, heavy load state, this charger most of the output gear ripple values are not more than 100mVp- p, positioned as the output quality of the mainstream charger on the market; and conversion efficiency performance is good, between 84.33% to 90.37%, the efficiency at 25W output up to 90.37%; and in the 25 ℃ environment to 20V1.5A 30W fully loaded for 1 hour, the maximum temperature does not exceed 68 ℃ under the domestic utility, meaning that the charger charging safer and longer life.

Overall macro view, this MSH 25W charger is in the mainstream echelon in terms of configuration and performance, but the extremely small body, whether traveling with or fast charging output, are capable of; charging experience, no different from the original Apple charger.
